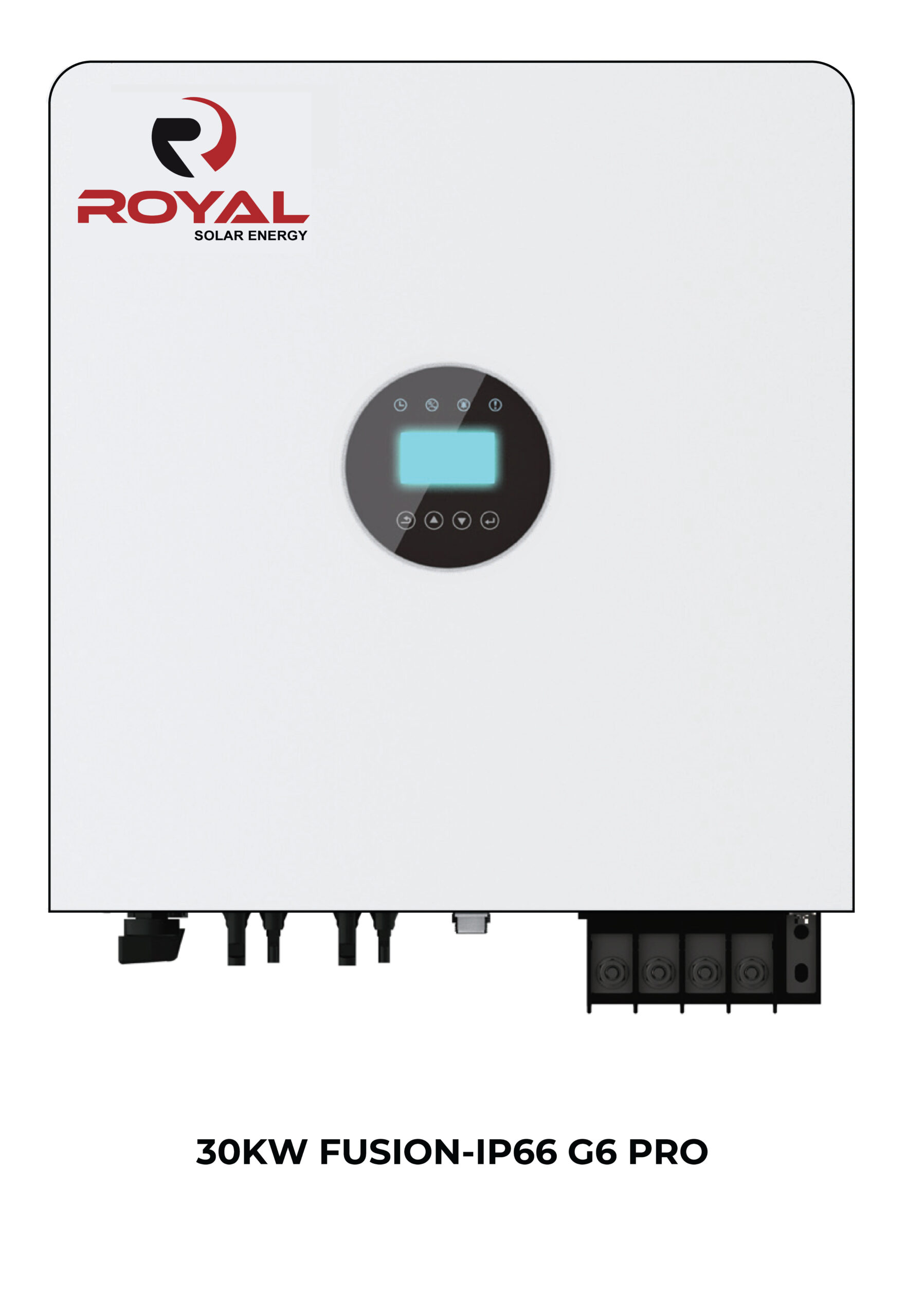

FUSION-IP66 G6 PRO 30KW Solar Inverter
Efficient IP66 Solar Inverter for Commercial Use
The FUSION-IP66 G6 PRO 30KW solar inverter offers efficient and reliable performance for commercial solar systems. With IP66 protection, it ensures durability and stable power output in demanding environments.
- RSE 3P G6-Pro Three Phase Range
- 160V-1100V MPPT voltage range ultra-low startup
- Wide MPPT design with a precise MPPT algorithm
- Built-in AC Short Circuit Protection
- Built-in DC Reverse Polarity Protection
- THDi<3%, low harmonic distortion against grid
- Over 99% Max. effciency
- Multiple protections levels
- RS485, 4G WiFi/LAN/GPRS interface
- WiFi monitoring available-Android and Apple App store available
Retail Price
₨ 350,000
Dealer
305,000
Description
| MODEL | Fusion-30KW | Fusion-40KW | Fusion-50KW |
|---|---|---|---|
| Input (DC) | |||
| Recommended Max PV I/P Power | 45KW | 60KW | 75KW |
| Max. DC Voltage | 1100 V | ||
| Nominal Voltage | 620 V | ||
| Start Voltage | 200 V | ||
| MPPT Voltage Range | 120 - 1000 V | ||
| MPPT Voltage Range(Full load) | 550 - 850 V | ||
| Number of MPPT | 3 | 4 | 4 |
| Max.Number of String per MPPT | 2/2/1 | 2/2/1/1 | 2 |
| Max. Input Current per MPPT | 40/40/20 A | 40/32/20/20 A | 40/40/32/32 A |
| Max. Short-circuit Current per MPPT | 50/50/30 A | 50/40/30/30 A | 50/50/40/40 A |
| Output (AC) | |||
| Nominal AC Output Power | 30000 W | 40000 W | 50000 W |
| Max. AC Output apparent Power | 33000 VA | 44000 VA | 55000 VA |
| Max. AC Output active Power | 33000 W | 44000 W | 55000 W |
| Nominal Voltage | 400 / 230 V, 3P+N+PE | ||
| AC Grid Frequency Range | 50Hz/60Hz | ||
| Maximum Output Current | 50 A | 66.7 A | 83.7 A |
| Power Factor (Φ | 0.8 leading - 0.8 lagging | ||
| THDi | 3% | ||
| Efficiency | |||
| Max. Efficiency | 98.8% | 98.8% | 98.8% |
| Euro Efficiency | 98.32% | 98.32% | 98.32% |
| Protection devices | |||
| DC Switch | Yes | ||
| Output Over Current Protection | Yes | ||
| Anti-islanding Protection | Yes | ||
| DC Reverse Polarity Protection | Yes | ||
| Insulation Detection | Yes | ||
| DC / AC Surge Protection | DC Type II; AC Type III; Type II Optional | ||
| Residual Current Monitoring | Yes | ||
| AFCI | Optional | ||
| General Specifications | |||
| Dimensions (W x H x D) | 575 x 450 x 225 mm | 575 x 450 x 225 mm | 575 x 450 x 225 mm |
| Weight | 24.2 kg | 27.7 kg | 29.4 kg |
| Operating Temperature Range | –30℃ ~+ 60℃ | ||
| Cooling Type | Fan cooling | Fan cooling | Fan cooling |
| Max. Operating Altitude | 4000 m（＞3000 m derating） | ||
| Max. Operating Humidity | 0 ~ 100% | ||
| AC Output Terminal Type | OT | ||
| IP Class | IP66 | ||
| Topology | Transformerless | ||
| PV Intput Terminal Type | MC4 | ||
| Display | LCD | ||
| Certification & Standard | EN/IEC 62109-1; EN/IEC 62109-2; IEC/EN 61000-6-1; IEC/EN 61000-6-3; IEC/EN 61000-6-2; IEC/EN 61000-6-4; IEC 61683; IEC 60068; IEC 62116; IEC61727; |
