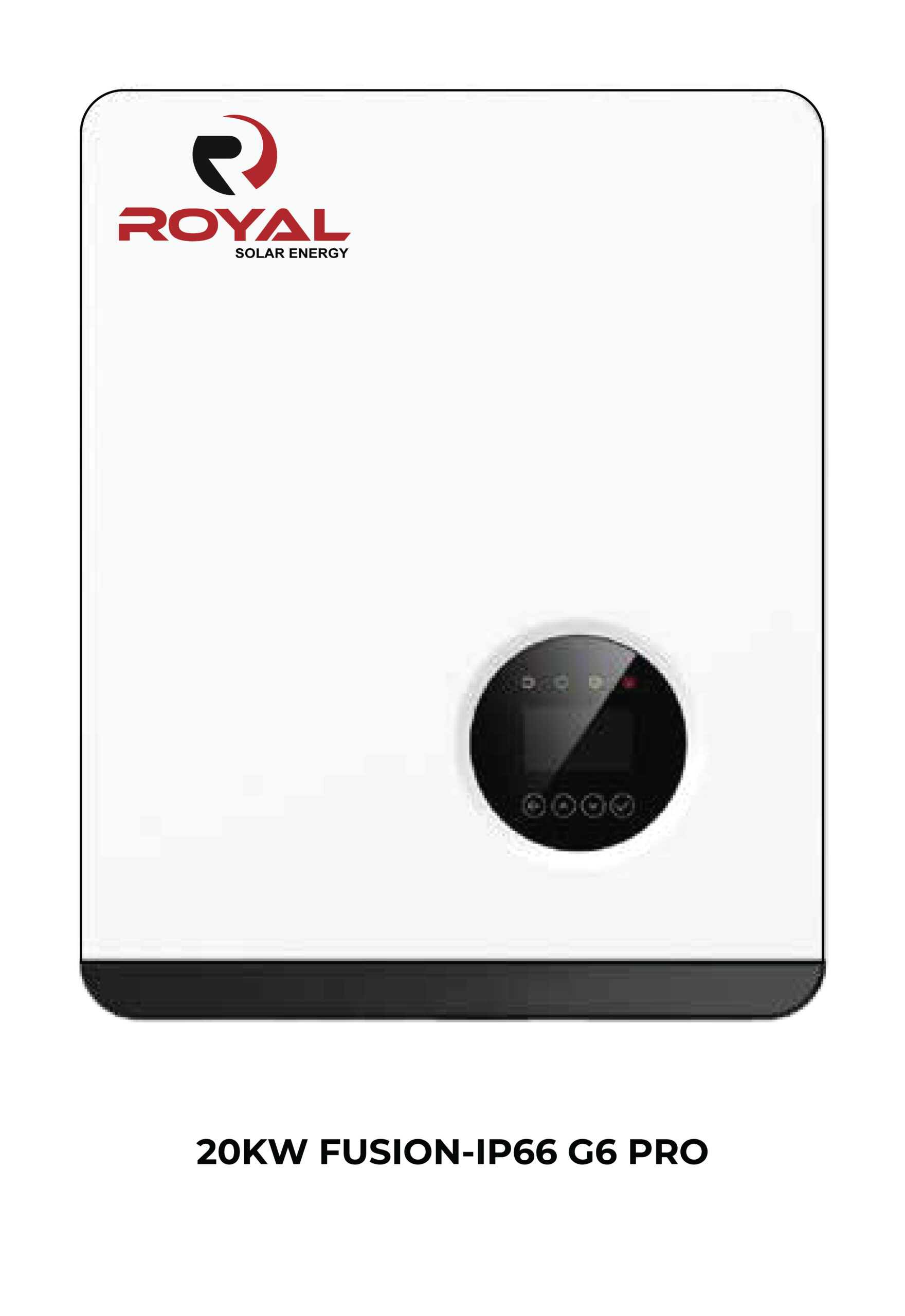

FUSION-IP66 G6 PRO 20KW
FUSION-IP66 G6 PRO 20KW
- RSE 3P G6-Pro Three Phase Range
- 160V-1100V MPPT voltage range-ultra low startup
- Dual MPPT design with precise MPPT algorithm
- Built-in AC Short Circuit Protection
- Built-in DC Reverse Polarity Protection
- THDi<3%, low harmonic distortion against grid
- Over 98.52% Max. e ciency
- Multiple protections levels
- RS485, 4G WiFi/LAN/GPRS interface
- WiFi monitoring available-Android and Apple App store available
Retail Price
₨ 295,000
Dealer
253,000
Description
| MODEL | Fusion-15kVA/12KW | Fusion-15KW | Fusion-20KW |
|---|---|---|---|
| Input (DC) | |||
| Recommended Max PV I/P Power | 15.6KW | 19.5KW | 26KW |
| Max. DC Voltage | 1100 V | ||
| Nominal Voltage | 650 V | ||
| Start Voltage | 250 V | ||
| MPPT Voltage Range | 140 - 1000 V | ||
| MPPT Voltage Range(Full load) | 420 - 850 V | ||
| Number of MPPT | 2 | ||
| Max.Number of String per MPPT | 1 | 1 | 2 |
| Max. Input Current per MPPT | 20 A | 20 A | 32 A |
| Max. Short-circuit Current per MPPT | 30 A | 30 A | 50 A |
| Output (AC) | |||
| Nominal AC Output Power | 12000 W | 15000 W | 20000 W |
| Max. AC Output apparent Power | 13200 VA | 16500 VA | 22000 VA |
| Max. AC Output active Power | 13200 W | 16500 W | 22000 W |
| Nominal Voltage | 400 / 230 V, 3P+N+PE | ||
| AC Grid Frequency Range | 50Hz/60Hz | ||
| Maximum Output Current | 20 A | 25 A | 33.3 A |
| Power Factor (Φ | 0.8 leading - 0.8 lagging | ||
| THDi | 3% | ||
| Efficiency | |||
| Max. Efficiency | 98.38% | 98.39% | 98.52% |
| Euro Efficiency | 98.01% | 98.01% | 98.03% |
| Protection devices | |||
| DC Switch | Yes | ||
| Output Over Current Protection | Yes | ||
| Anti-islanding Protection | Yes | ||
| DC Reverse Polarity Protection | Yes | ||
| Insulation Detection | Yes | ||
| DC / AC Surge Protection | DC Type II; AC Type III; Type II Optional | ||
| Residual Current Monitoring | Yes | ||
| AFCI | Optional | ||
| General Specifications | |||
| Dimensions (W x H x D) | 380 x 483 x 161 mm | 380 x 483 x 193 mm | 380 x 483 x 193 mm |
| Weight | 15.5 kg | 16.8 kg | 18.7 kg |
| Operating Temperature Range | –25℃ ~+ 60℃ | ||
| Cooling Type | Natural cooling | Fan cooling | Fan cooling |
| Max. Operating Altitude | 4000 m（＞3000 m derating） | ||
| Max. Operating Humidity | 0 ~ 100% | ||
| AC Output Terminal Type | OT | ||
| IP Class | IP66 | ||
| Topology | Transformerless | ||
| PV Intput Terminal Type | MC4 | ||
| Display | LCD | ||
| Certification & Standard | EN/IEC 62109-1; EN/IEC 62109-2; IEC/EN 61000-6-1; IEC/EN 61000-6-3; IEC/EN 61000-6-2; IEC/EN 61000-6-4; IEC 61683; IEC 60068; IEC 62116; IEC61727; |
