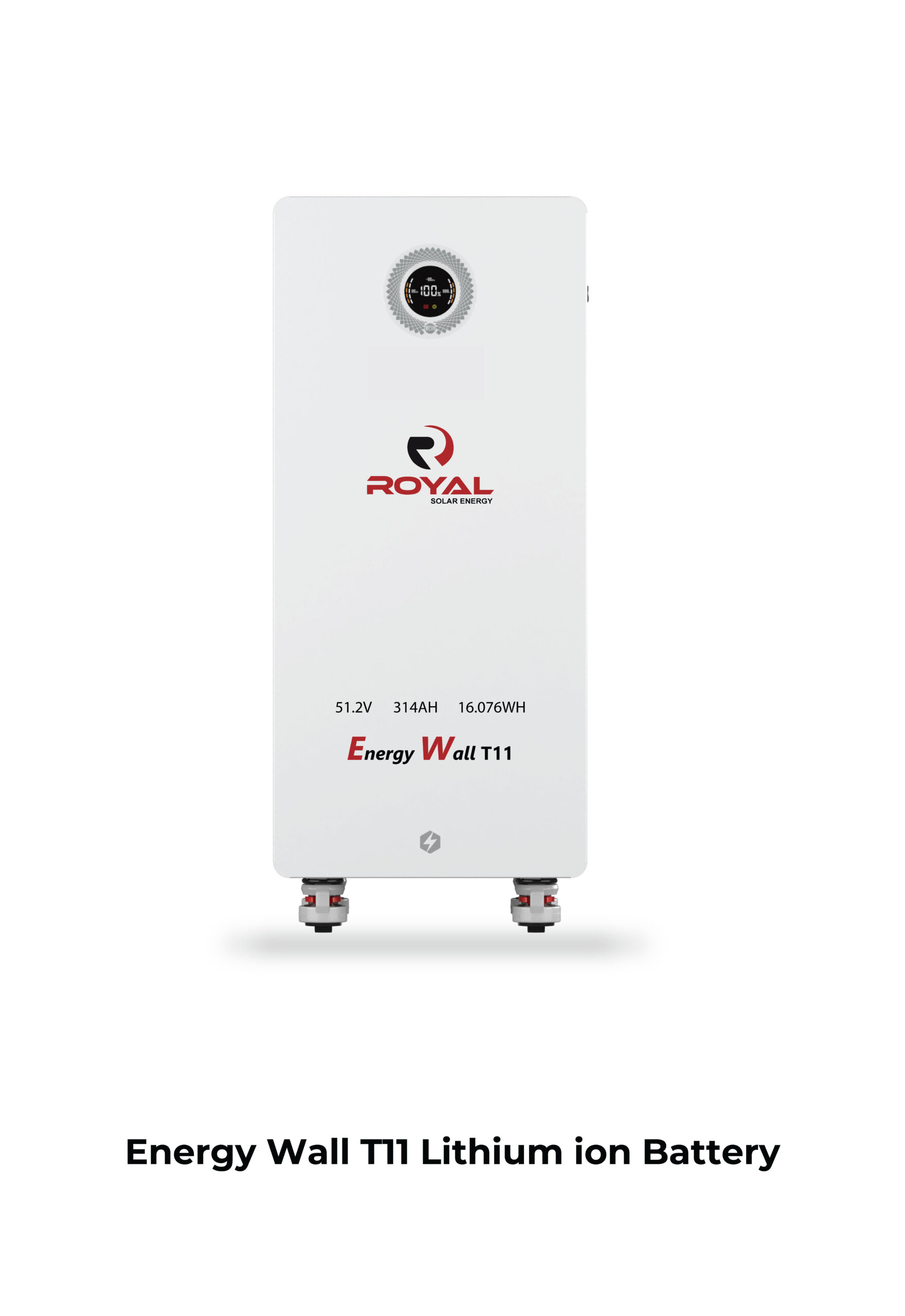

Premium Energy Wall T11-16.0-LPB, Lithium Ion Battery 16kw

Model Nominal Voltage (Vdc): 51.2

Operating on a standard 51.2V DC nominal voltage platform ensures high energy efficiency, maximum safety, and easy alignment with low-voltage solar system architectures.

Capacity (Ah): 314

Equipped with high-density 314Ah capacity cells that store substantial electrical charge to deliver longer runtimes during extended grid outages.

Nominal Capacity (kWh): 16.076

Delivers a massive total energy storage capacity of 16.076kWh from a single standalone unit to power heavy household and commercial appliances uninterrupted.

Built-In Circuit Breaker: 125A, 2P

Features an integrated 125A double-pole (2P) circuit breaker built directly into the housing to guarantee immediate hardware protection against electrical overloads and short circuits.

Nominal Charge/Discharge Current (A): 157/157

Supports a continuous standard charging and discharging current of 157 Amperes, enabling rapid battery replenishment and steady continuous power output without overheating.

Max Charge/Discharge Current (A): 200/200

Handles peak charge and discharge surge currents up to 200 Amperes effortlessly, ensuring smooth operation when starting heavy motor-driven or high-wattage equipment.

Max Depth of Discharge: 95%

Allows users to safely utilize up to 95% of the total battery capacity to maximize daily usable energy output without damaging the internal cell chemistry.

Cycle Life: 8000 @90%DOD, 25°C, 0.5C

Offers an impressive lifespan of up to 8,000 charge-discharge cycles at 90% depth of discharge, providing over 15 to 20 years of reliable daily operation.

Dimension (W×D×H) (mm): 380×239×838

Engineered with a slim vertical tower profile measuring 380mm wide, 239mm deep, and 838mm high to minimize floor space usage while maintaining an elegant aesthetic.

Weight (Kg): 116

Weighs 116 kilograms, reflecting high-density internal cells and a heavy-duty protective metal structure that provides a stable ground stance without tipping risks.

IP Rating: IP20 (with top cover)

Comes with an IP20 protection rating (when using the top cover) that protects internal components against vertical water drips and dust accumulation during indoor operations.

Installation: Floor Mounted

Designed for convenient floor-mounted placement that eliminates the need for heavy wall anchors, making system setup and future maintenance fast and effortless.

Working Environment of Energy Wall T11-16.0-LPB Battery

Charge Working Temperature(°C): 0~55°C
Discharge Working Temperature(°C): -20~55°C
Altitude(M): <2500
Humidity(RH): 5-95%

Communication/Warranty of Energy Wall T11-16.0-LPB Battery

Communication Port: RS485, CAN

Integrates dual RS485 and CAN bus communication protocols to ensure real-time data exchange, precise monitoring, and automated cell balancing with connected inverters.

Warranty Period: 10 Years

Backed by a robust 10-year manufacturer warranty that safeguards your solar investment against unexpected manufacturing defects and premature capacity loss.

Compatible Inverter List

Offers universal plug-and-play compatibility with mainstream high-efficiency inverter brands including Solis, Deye, Growatt, Victron, Afore, Goodwe, Voltronic, Gospower, SRNE, and Felicity.
