Energy-Wall-S5

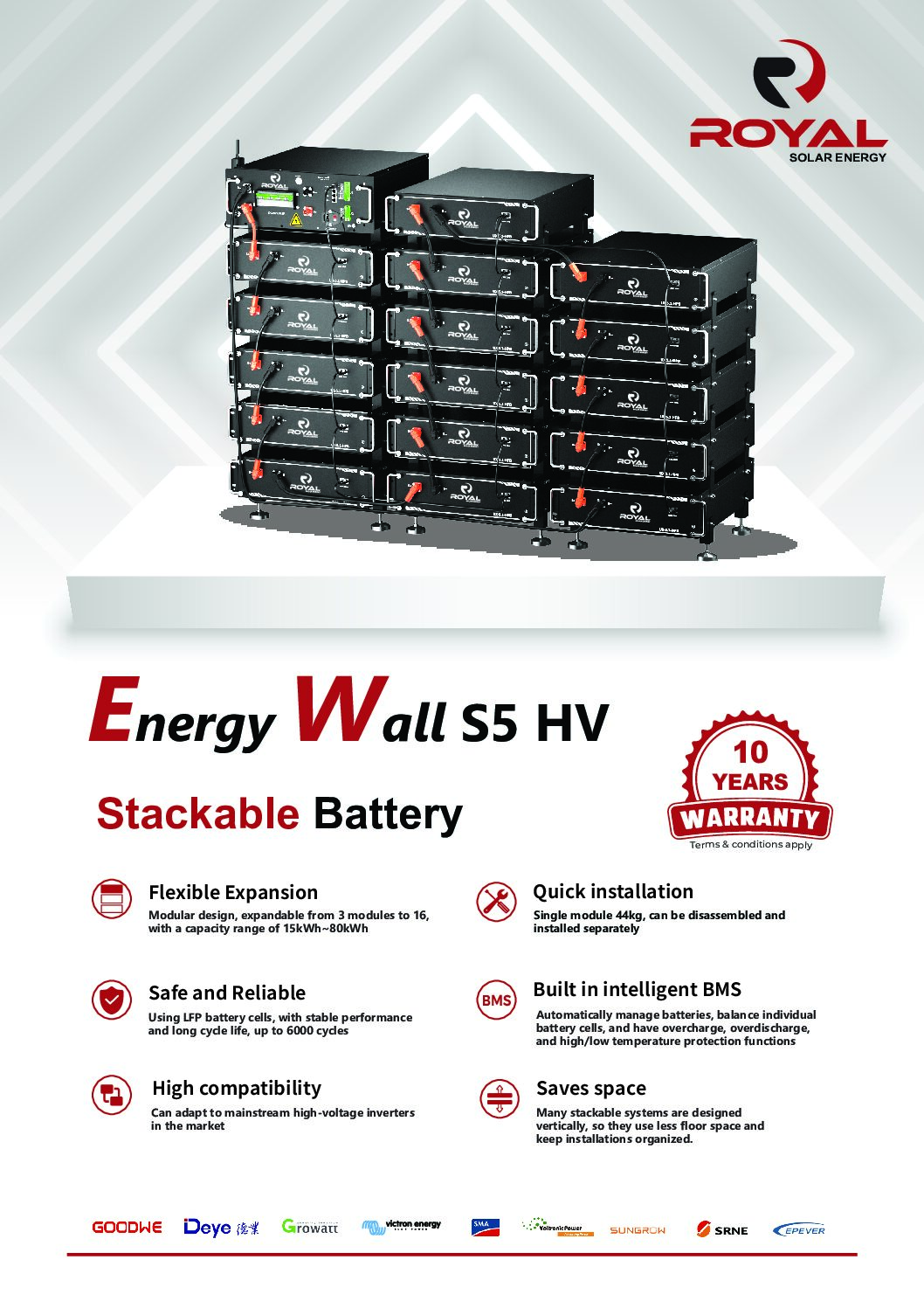

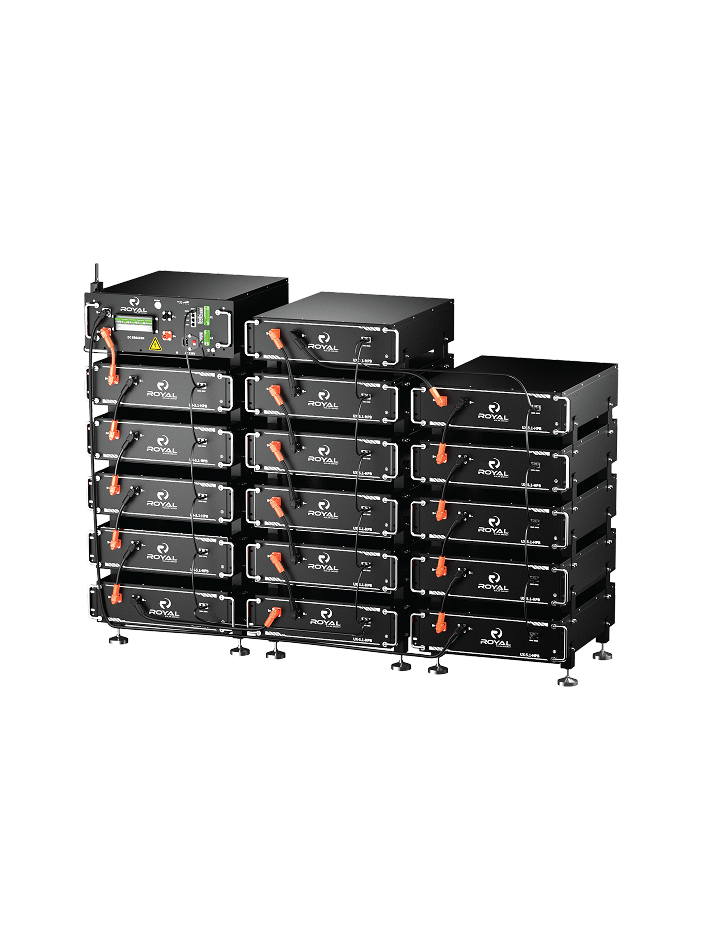

Energy Wall S5 HV Battery
Features of Energy Wall S5 HV Battery
Flexible Expansion
- Modular design allows smooth scalability from 3 up to 16 battery modules for custom power setups.
- Offers a total capacity range spanning from 48kWh to 80kWh to meet growing energy demands.
Quick Installation
- Each single battery module weighs only 48kg, making it lightweight and manageable for installers.
- Designed to be easily disassembled and handled without requiring specialized heavy machinery on site.
- Streamlines the entire setup process, significantly reducing labor time and overall installation complexity.
Safe and Reliable
- Built with high-grade Lithium Iron Phosphate (LFP) battery cells renowned for top-tier thermal safety.
- Delivers stable long-term power output with an extended lifespan reaching up to 6,000 operational cycles.
- Ensures high operational security and low degradation over years of continuous daily charge-discharge cycles.
Built-in Intelligent BMS
- Features an integrated Battery Management System that continuously monitors and balances individual cell voltages.
- Automatically guards against overcharging, deep over-discharging, and dangerous power spikes.
- Actively regulates performance during extreme high or low temperatures to ensure operational stability.
High Compatibility
- Engineered to seamlessly communicate with mainstream high-voltage inverters across the global market.
- Eliminates system protocol conflict during integration with new or existing solar inverter setups.
- Optimizes total system efficiency by ensuring synchronized communication between battery and inverter.
Saves Space
- Utilizes an intelligent vertical stackable configuration to drastically minimize floor footprint usage.
- Keeps equipment areas clean, modern, and organized while providing high-density energy storage.
- Ideal for installations with restricted ground area, maximizing available space without sacrificing output.
Models and Speccifications in Energy Wall S5 HV Battery
| Model | Battery/PACK Number | Nominal Energy (kWh) | Rated Voltage (V) |
|---|---|---|---|
| SS-20-48-10P | 4 | 20.48 | 204.8 |
| SS-25-6D-10PHS | 5 | 25.06 | 256 |
| SS-30-72-10PHS | 6 | 30.72 | 307.2 |
| SS-35-84-10P | 7 | 35.84 | 358.4 |
| SS-40-96-10PHS | 8 | 40.96 | 409.6 |
| SS-46-06-10PHS | 9 | 46.08 | 460.8 |
| SS-50-02-10PHS | 10 | 51.2 | 512 |
| SS-55-32-10PHS | 11 | 56.32 | 563.2 |
| SS-60-44-10PHS | 12 | 61.44 | 614.4 |
| SS-65-56-10PHS | 13 | 66.56 | 665.6 |
| SS-71-68-10PHS | 14 | 71.68 | 716.8 |
| SS-81-92-10PHS | 16 | 81.92 | 819.2 |
Capacity Range (Ah)
Rated Current
- 50A
Max Charging Current / Discharging Current
- 50A
General Parameters in Energy Wall S5 HV Battery
Display: LED Indicator
- Equipped with clear visual LED status lights directly on the front panel for real-time monitoring.
- Provides immediate feedback on current power levels.
- Allows quick visual inspection for homeowners and engineers without needing diagnostic software.
Communication Interface: RS485 / CAN
- Features dual industry-standard RS485 and CANbus protocols for high-speed data transfer.
- Ensures seamless, real-time data exchange between the battery bank, inverters, and monitoring tools.
Working Temperature Range: Charging 0~50°C, Discharging -20~55°C
- Supports wide environmental tolerance with charging capability from freezing 0°C up to 50°C heat.
- Delivers reliable discharge power in extreme cold environments down to -20°C and heat up to 55°C.
- Guarantees unbroken energy supply across severe seasonal climate variations and harsh outdoor conditions.
Operating Humidity Range: 5%–95% RH, No Condensation
- Operates smoothly within broad relative humidity levels ranging from 5% up to 95%.
- Engineered with internal protection to prevent moisture buildup and short circuits .
Altitude: 3000m
- Certified for high-altitude operations up to 3,000 meters above sea level without performance loss.
- Maintains reliable internal insulation and heat dissipation .
Cooling Method: Natural Cooling
- Utilizes passive natural convection cooling without noisy internal mechanical fans or moving parts.
- Eliminates internal fan failure risks, reducing maintenance requirements and increasing unit lifespan.
- Provides near-silent operation, making it ideal for indoor residential or noise-sensitive utility areas.
IP Rating: IP20
- Built with an IP20-rated enclosure designed to protect internal electronics against solid objects.
- Optimized specifically for indoor rack or stackable installation environments.
Installation Method: Stackable Bracket
- Employs modular stackable brackets that lock together tightly without complex mounting hardware.
- Ensures stable vertical alignment, preventing tipping and ensuring structural safety when stacked high.
Scalability: 3~16
- Supports flexible multi-unit connection options starting from a minimum of 3 up to 16 modules.
- Enables granular capacity scaling so businesses and homeowners can start small and expand later.
Battery PACK Parameters in Energy Wall S5 HV Battery
- Model: 51.2V-1P
- Battery PACK Specifications: 51.2V / 100Ah / 5120Wh
- Life Cycles: 6000 cycles @ 90% DOD, 25°C, 0.5C
- Dimensions (W×D×H): 487 × 570 × 130mm
